GYPTONE™ 12MM SQUARE

Enhanced acoustics and style are the hallmarks of Gyptone 12mm Square perforated plasterboard. This superior acoustic solution delivers a grid-format geometric effect plus enhanced air quality thanks to patented Activ’Air technology.

PRODUCT OVERVIEW

Manufactured by worldwide plasterboard specialist, Saint-Gobain, Gyptone is purpose built to provide exceptional acoustic control with contemporary design. A flexible option provides even greater levels of design freedom.

High levels of acoustic absorption are achieved through a combination of perforation patterns and a highly effective black acoustic fabric backing which also prevents dust from the ceiling entering the room and masks the ceiling framework.

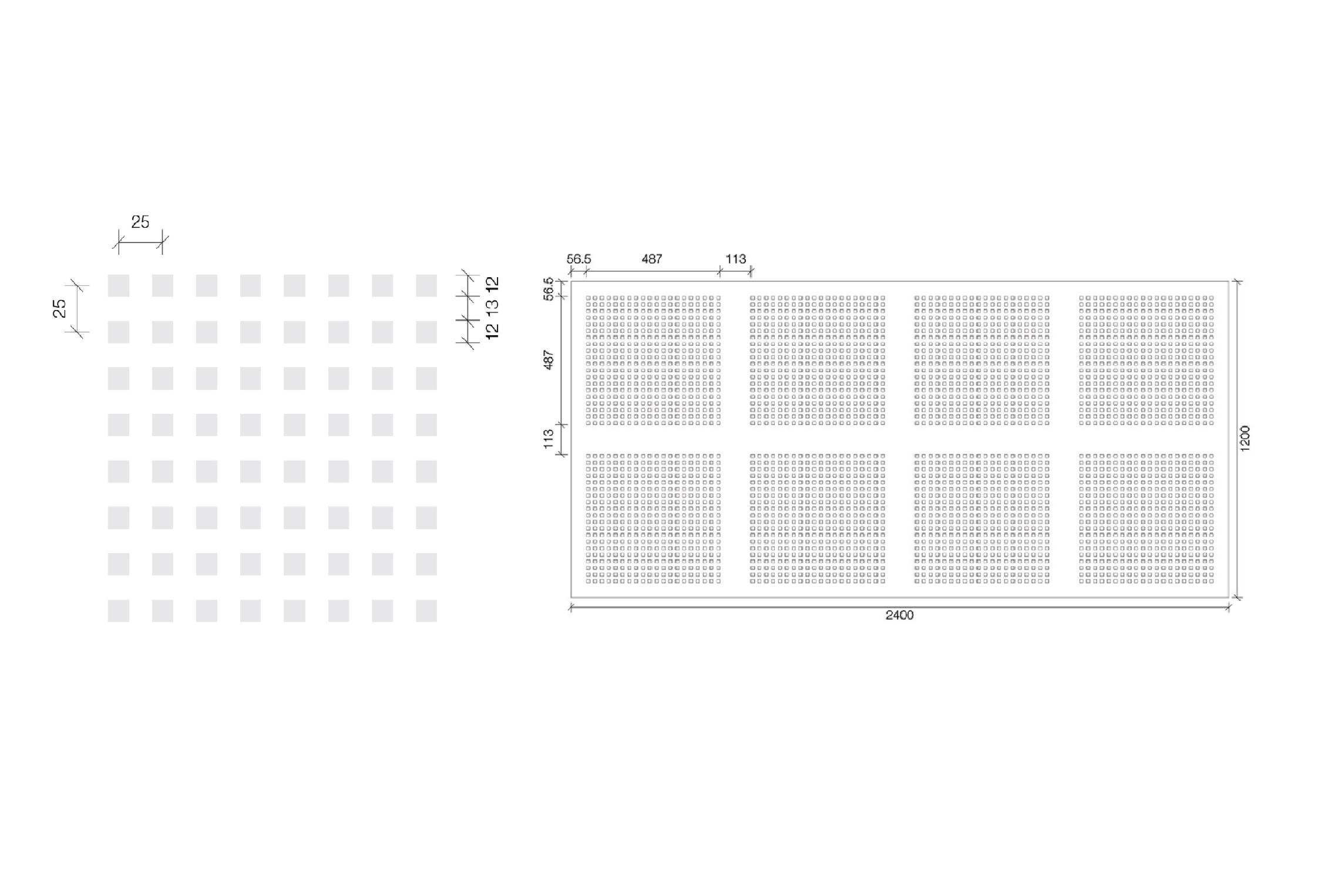

Gyptone 12mm Square features eight large square groupings per sheet, each with 400 x 12mm square perforations at 25mm centres, providing a 16% open area.

Gyptone is also manufactured with Activ’Air technology which has an enduring impact on indoor air quality.  All four edges of Gyptone perforated plasterboards are recessed to make flush jointing quicker and easier without the need for butt joints between full panels. The availability of seamless access panels, ensures easy access to the ceiling cavity while maintaining pattern continuity.

TYPICAL APPLICATIONS

Gyptone perforated plasterboard is typically used as a high performance plasterboard for ceilings in commercial constructions where a high level of acoustic performance is required. This includes applications such as theatres, restaurants, shopping centres and hotel foyers. Whilst perforated plasterboard in predominantly installed in ceilings, it is suitable for use in walls.

Gyptone joints are finished with a three coat jointing system and sanded smooth prior to decoration.

Specifications

  • Brand
    Gyprock
  • Material
    Plasterboard
  • Thickness
    6.5mm Flexible | 12.5mm Standard
  • Width
    1200mm
  • Length
    2400mm
  • Edge Profile(s)
    Recessed Edge for Regular Jointing
  • Thermal Performance (R-Value)
    0.07 m²K/W
  • Combustibility
    In accordance with BCA Clause C1.12, Gyprock Perforated Plasterboard may be used wherever a non-combustible material is required by the Code
